Description

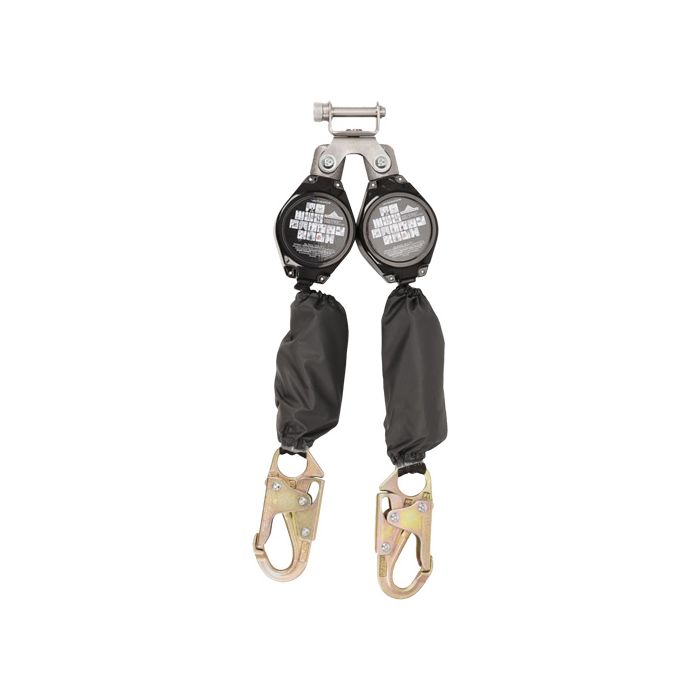

• Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists
• They provide additional protection against sharp or abrasive surfaces found on many construction sites
• The lightweight, durable, aluminum housing unit is approved for use in vertical and horizontal applications
• The attachment points include a swivel eye on housing and double action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring
• Double-locking 5,000 lbs. carabiner with 3,600 lbs. gate strength
• Swivel top eliminates lifeline twisting and entanglement
• Lightweight aluminum housing, more durable than competitor SRLs with plastic housings
• Smaller, more compact housing, 3” diameter
• The anchor point incorporates a heavy-duty, durable, and convenient swivel eye
• SRLs with webbing feature a sewn-in indicator on the lifeline itself for maximum safety
• Rescue units come with release pins and a two-way winding handle to engage the rescue/recovery mode
• 310 lbs. (136 kg) capacity for 1 worker (combined weight of person, tools, clothing, etc.)
• Lightweight units can be mounted on a worker's harness for better mobility and range of motion
• Features a sewn-in indicator on the lifeline itself for maximum safety

Specifications

CSA Certification	SRL-LE
Unit Connector	Snap Hook
Lifeline Connector Material	Steel
Lifeline Connector	Without Unit Connector
Unit Connector Material	Aluminum
Swivel or Stationary	Swivel
Sold As	Each
Lifeline Material	Dyneema®
No. of SRLs	2
Lifeline Length	6'
Manufacturer	Peakworks
Average Arrest Force	4.12 kN (926 lbf)
Weight Capacity	310 lbs. (141 kg)
Standard(s) Met	CSA Z259.2.2-2017, ANSI Z359.14-2014, Class B
Class Type	B
Gate Opening	B
Max. Total Arrest Distance (Non-Leading Edge)	12'
Min. Fall Clearance (Leading Edge)	20'
Min. Fall Clearance (Non-Leading Edge)	10'
Min. Set Back Distance from Edge (Leading Edge)	30'
