Peakworks

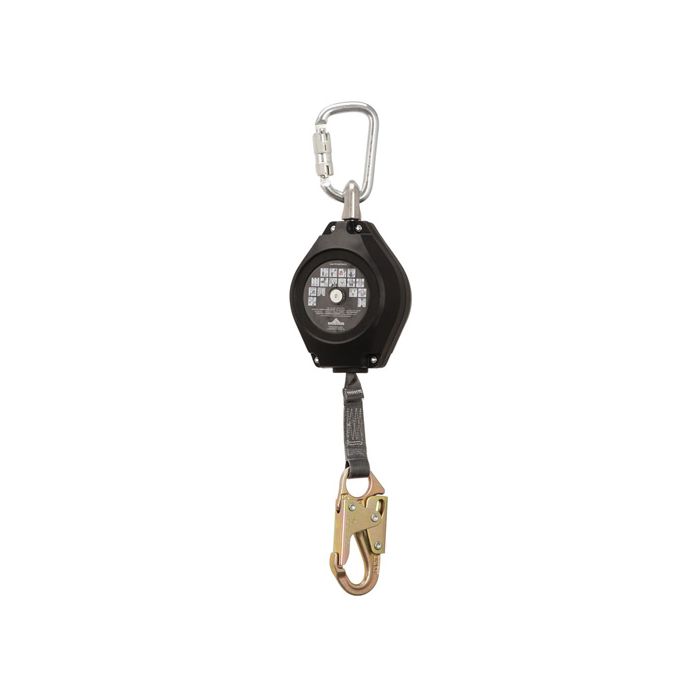

Self-Retracting Lifeline
Description
- Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists
- They provide additional protection against sharp or abrasive surfaces found on many construction sites
- The lightweight, durable, aluminum housing unit is approved for use in vertical and horizontal applications
- The attachment points include a swivel eye on housing and double action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring
- Designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge
- Leading Edge SRLs provide additional protection against sharp or abrasive surfaces found on many construction sites
- A Leading Edge SRL can be mounted below a worker's fall arrest D-Ring (please refer to instruction manual for details)
- All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications
- The anchor point incorporates a heavy-duty, durable, and convenient swivel eye
- SRLs with webbing feature a sewn-in indicator on the lifeline itself for maximum safety
- Rescue units come with release pins and a two-way winding handle to engage the rescue/recovery mode
- 310 lbs. (136 kg) capacity for 1 worker (combined weight of person, tools, clothing, etc.)
- Lightweight units can be mounted on a worker's harness for better mobility and range of motion
- Features a sewn-in indicator on the lifeline itself for maximum safety
Specifications
| CSA Certification | SRL-LE |
|---|---|
| Unit Connector | Snap Hook |
| Lifeline Connector Material | Steel |
| Lifeline Connector | Carabiner |
| Swivel or Stationary | Swivel |
| Sold As | Each |
| Lifeline Material | Dyneema® |
| No. of SRLs | 1 |
| Lifeline Length | 18' |
| Manufacturer | Peakworks |
| Average Arrest Force | 4.12 kN (926 lbf) |
| Weight Capacity | 310 lbs. (141 kg) |
| Standard(s) Met | CSA Z259.2.2-2017, ANSI Z359.14-2014, Class B |
| Class Type | B |
| Gate Opening | B |
| Max. Total Arrest Distance (Non-Leading Edge) | 57' |
| Min. Fall Clearance (Leading Edge) | 16' |
| Min. Fall Clearance (Non-Leading Edge) | 9' |
| Min. Set Back Distance from Edge (Leading Edge) | 40' |
