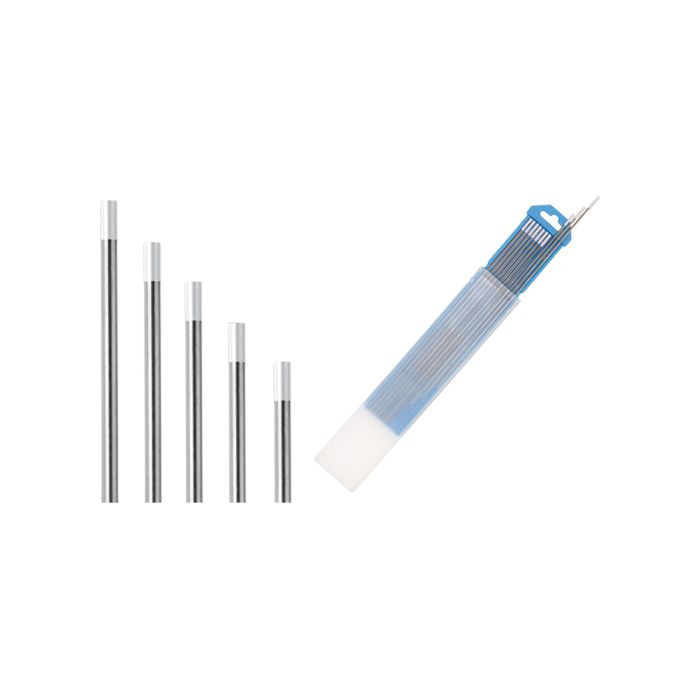

Tungsten Electrodes

TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: - Facilitate arc starting - Increase arc stability - Improve current carrying capacity of the electrode - Reduce the risk of weld contamination - Increase electrode lifeOxides used are primarily zirconium, thorium, lanthanum or ceriumAdditions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employedThorium oxide (thoria), effective in terms of long life and thermal efficiencyZirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminumElectrode length: 7"Each package contains 10 electrodes; Zirconiated:Excellent for AC welding due to the higher arc stabilityHigh-resistance to weld pool contaminationExcellent balled end retentionHandles higher current with less spittingBetter arc starts and arc stability than pure tungsten;
SKU
T187GZ

Description / Tungsten Electrodes

  • TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: - Facilitate arc starting - Increase arc stability - Improve current carrying capacity of the electrode - Reduce the risk of weld contamination - Increase electrode life
  • Oxides used are primarily zirconium, thorium, lanthanum or cerium
  • Additions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employed
  • Thorium oxide (thoria), effective in terms of long life and thermal efficiency
  • Zirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminum
  • Electrode length: 7"
  • Each package contains 10 electrodes; Zirconiated:
  • Excellent for AC welding due to the higher arc stability
  • High-resistance to weld pool contamination
  • Excellent balled end retention
  • Handles higher current with less spitting
  • Better arc starts and arc stability than pure tungsten;

More Information

Diameter 1/8"
Length 7"
Manufacturer CK Worldwide Inc
Secondary Attributes
ISO Colour Chart
White AWS A5.12 EWZr-8 ISO 6848 WZ8
Sold/Priced Per
Pack
Qty/Pack
10
Type
0.8% Zirconiated
Colour
0.8% Zirconiated
