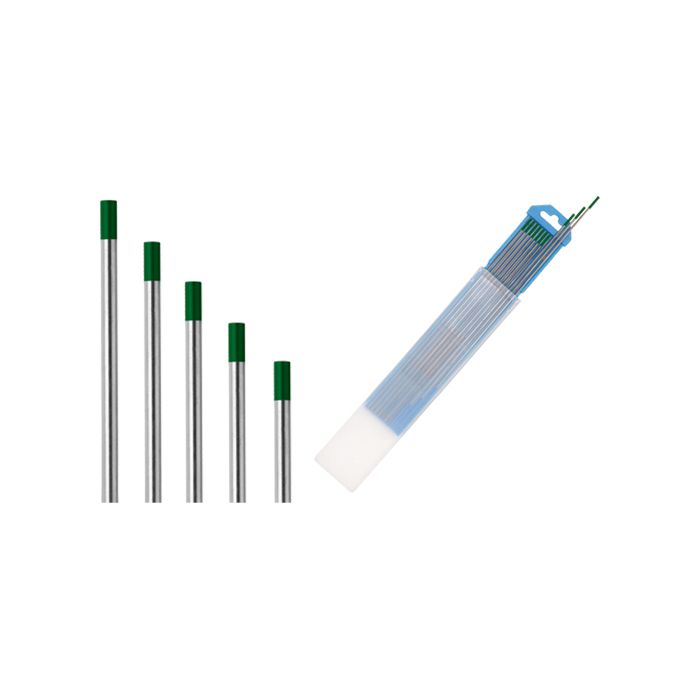

Tungsten Electrodes

TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: -Facilitate arc starting -Increase arc stability -Improve current carrying capacity of the electrode -Reduce the risk of weld contamination -Increase electrode lifeOxides used are primarily zirconium, thorium, lanthanum or ceriumAdditions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employedThorium oxide (thoria), effective in terms of long life and thermal efficiencyZirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminumElectrode length: 7"Each package contains 10 electrodes; Pure:Lowest current capacity and least expensiveMaintains a clean balled end for welding on ACMore prone to weld contamination than other types of tungsten electrodesTends to spit at higher currentsUsed for non-critical welds only
SKU
T187G

Description / Tungsten Electrodes

  • TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: -Facilitate arc starting -Increase arc stability -Improve current carrying capacity of the electrode -Reduce the risk of weld contamination -Increase electrode life
  • Oxides used are primarily zirconium, thorium, lanthanum or cerium
  • Additions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employed
  • Thorium oxide (thoria), effective in terms of long life and thermal efficiency
  • Zirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminum
  • Electrode length: 7"
  • Each package contains 10 electrodes; Pure:
  • Lowest current capacity and least expensive
  • Maintains a clean balled end for welding on AC
  • More prone to weld contamination than other types of tungsten electrodes
  • Tends to spit at higher currents
  • Used for non-critical welds only

More Information

Diameter 1/8"
Length 7"
Manufacturer CK Worldwide Inc
Secondary Attributes
ISO Colour Chart
Green AWS A5.12 EWP ISO 6848 WP
Sold/Priced Per
Pack
Qty/Pack
10
Type
Pure
Colour
Pure
